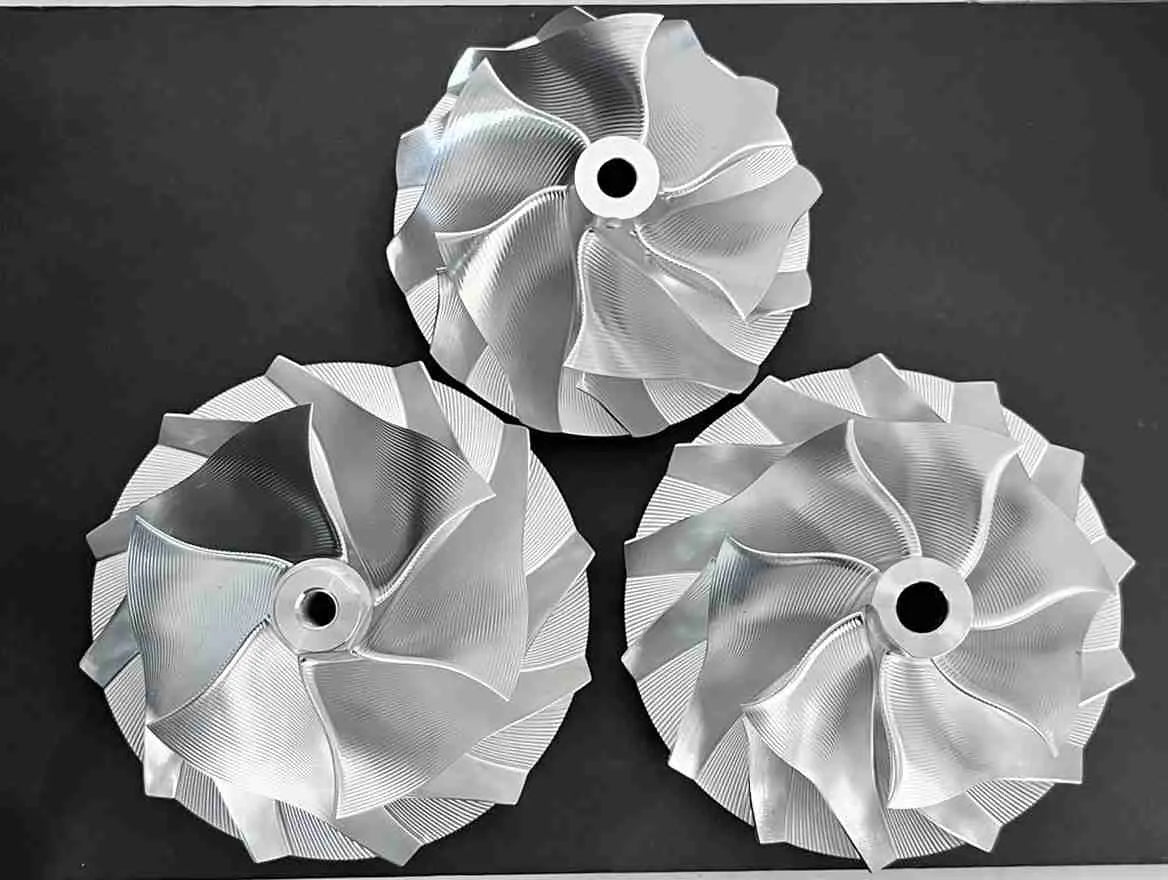

- Curved point milled billet compressor wheel for improved airflow and efficiency
- A series Turbine wheel with slim nose and hub for reduced weight and faster spool-up
- Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag

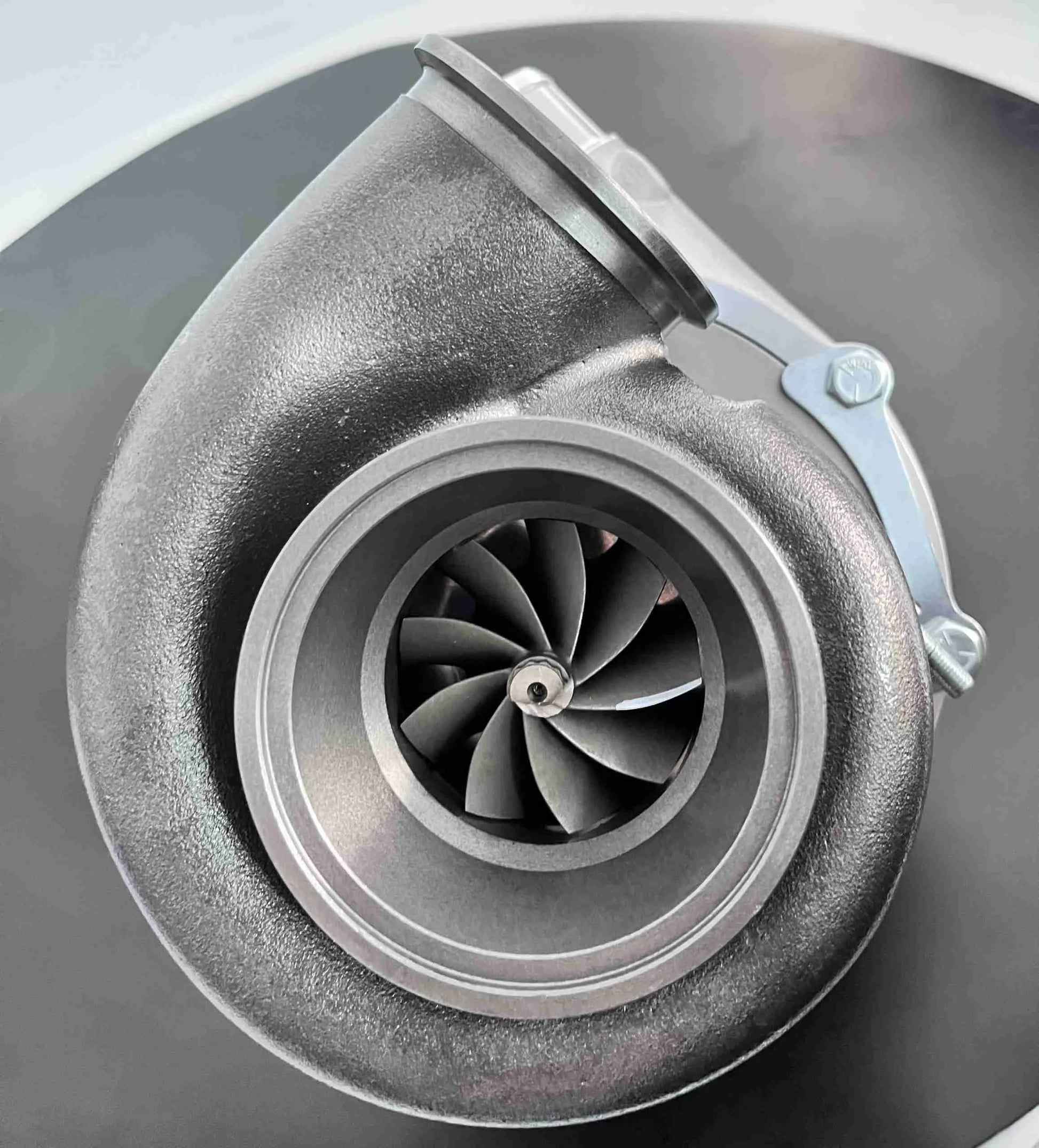

- Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
- Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity
- Curved Point Milled Compressor Wheel: 68*84mm
- A Series Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose
- Compressor Outlet: 2.5” Hose
- Turbine Inlet: T3/T4/V-BAND
- Turbine Outlet: 3” V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
