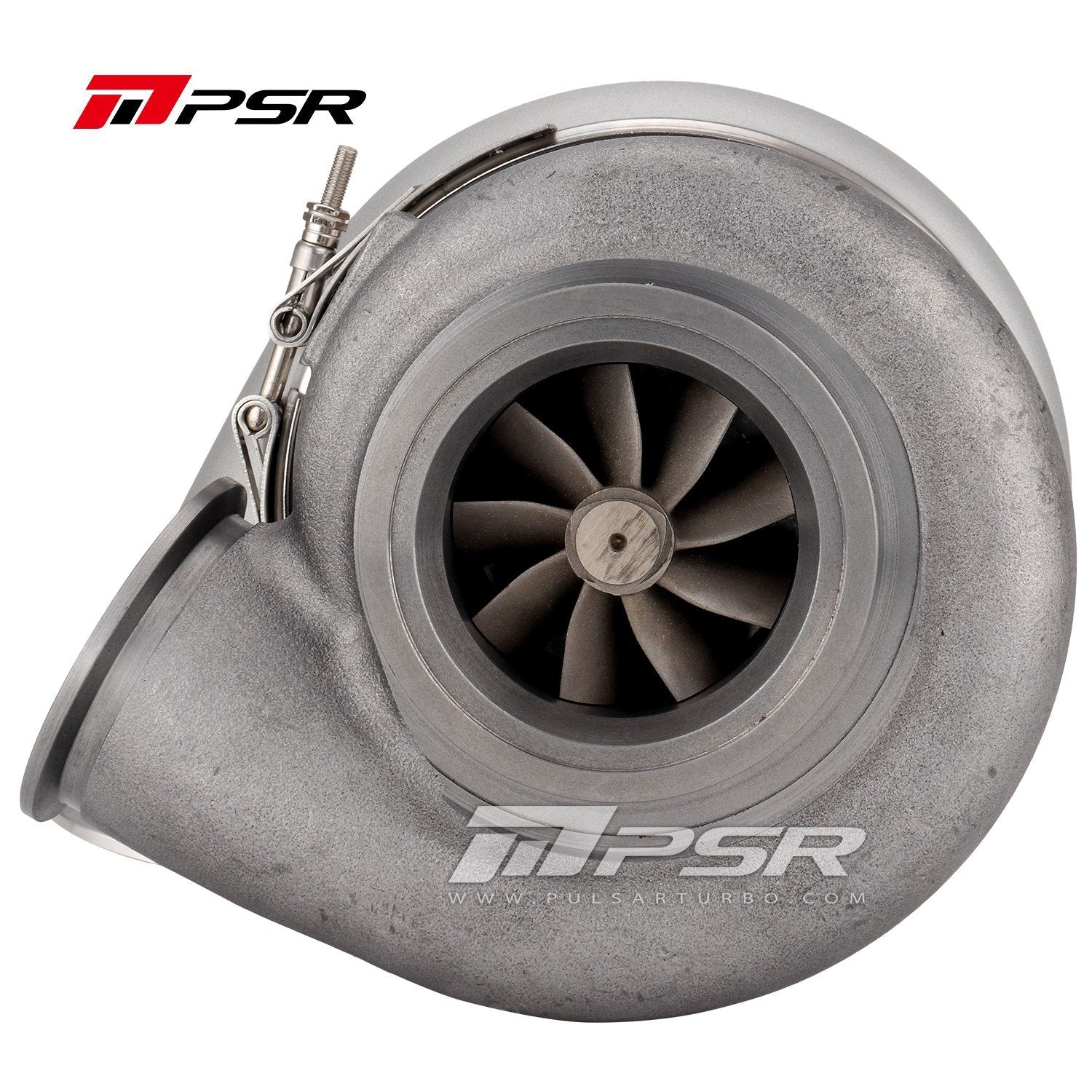

- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- 8 Options in Turbine Housing

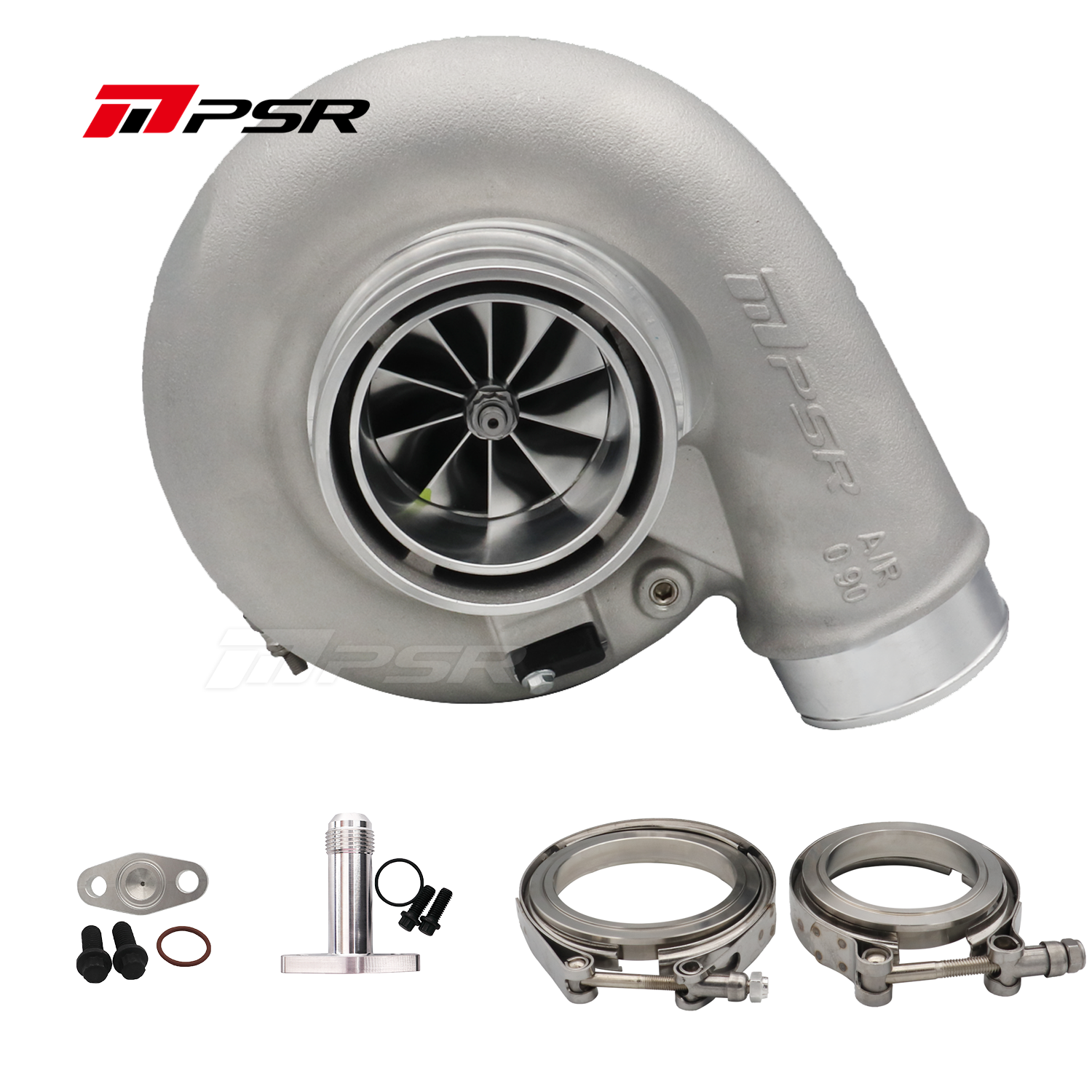

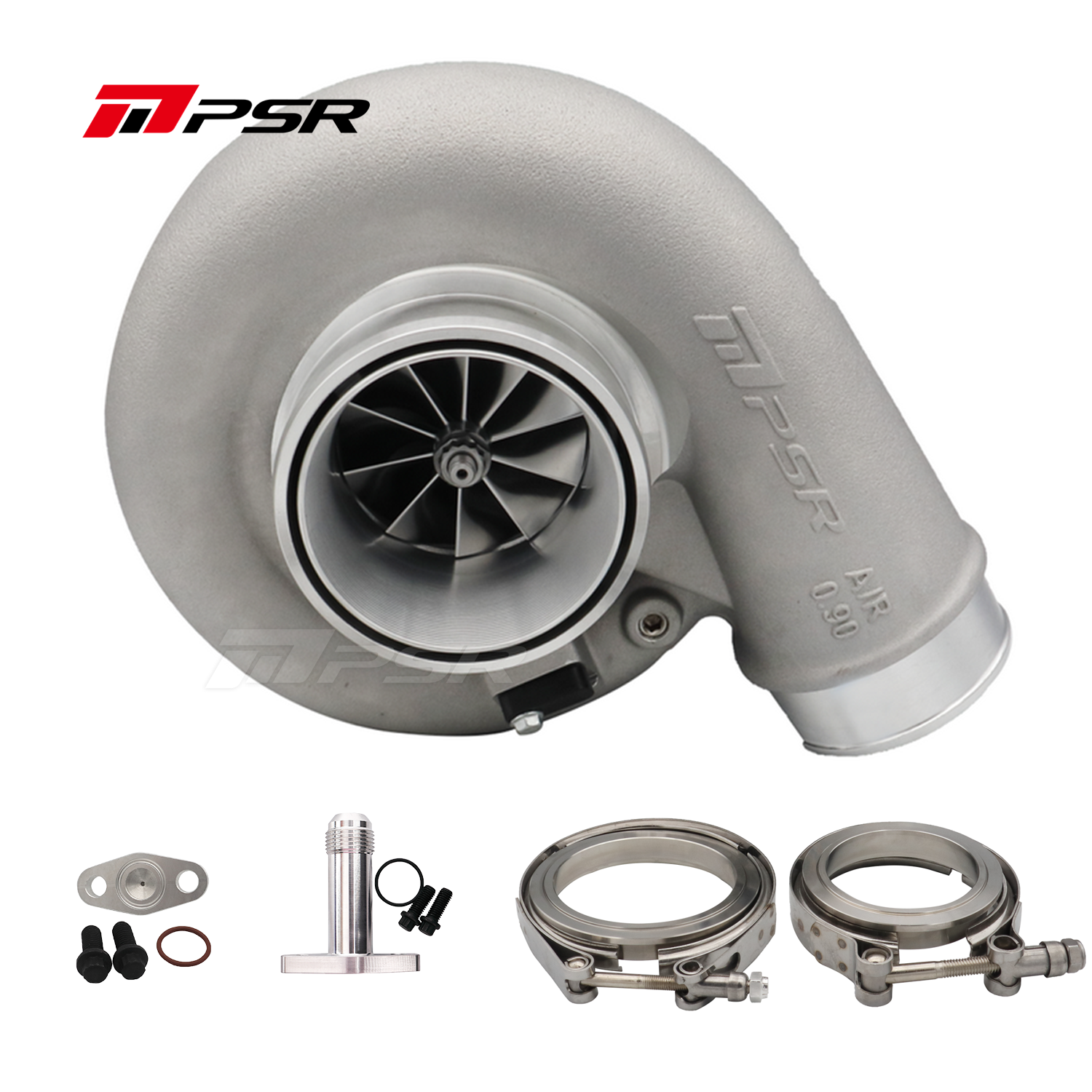

- Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turbo. Inlet, 3.5”/4” flange kit for Turbo. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately
- Compressor Wheel: 79*98mm
- Turbine Wheel: 82*75mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 3″ hose
- Water Ports: -6AN
- Oil Feed: Flange Required
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
-
Turbine housing option:

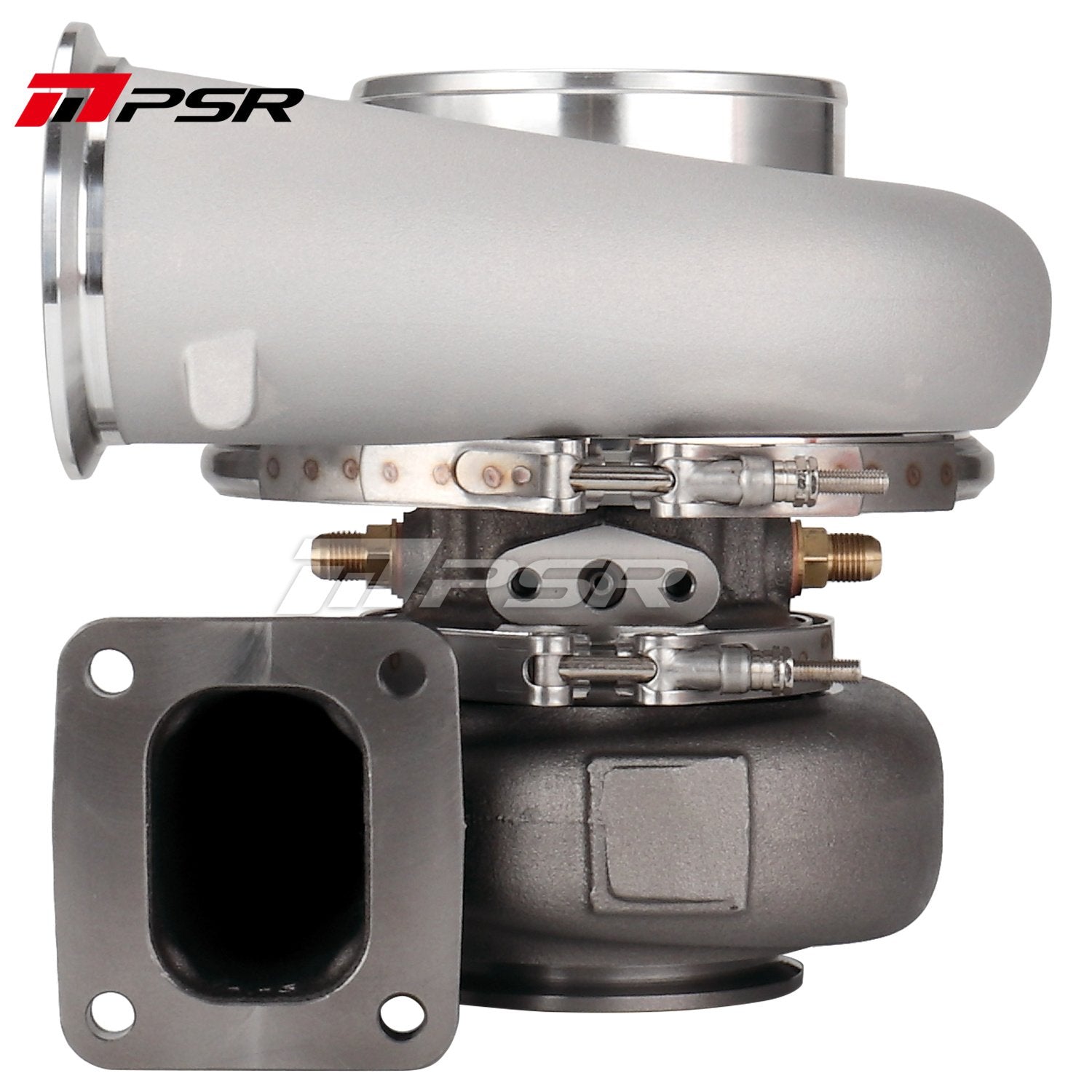

- T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
- T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
- T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 0.95A/R
- T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
- T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
- Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
- Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
- Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
