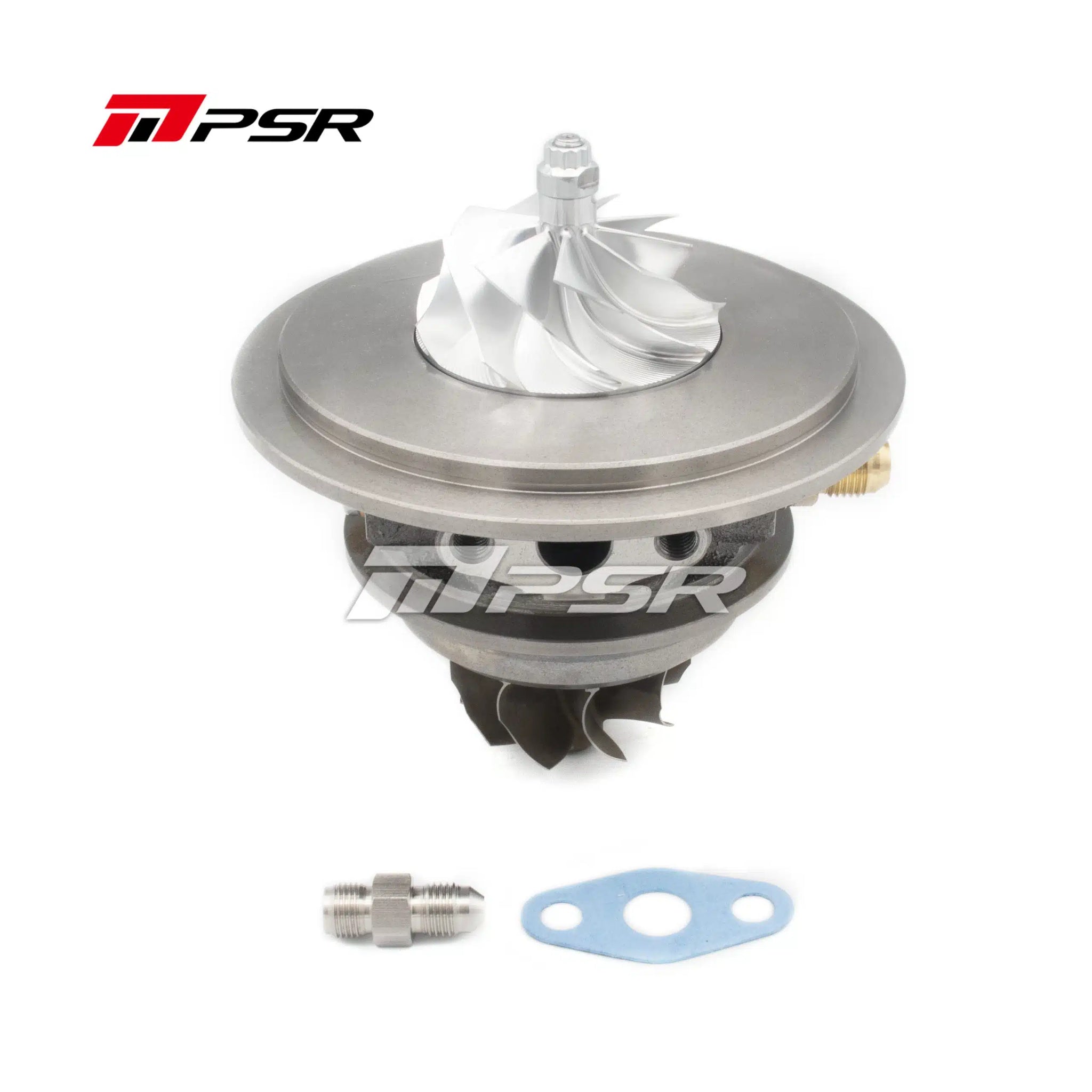

- Dual Ceramic ball bearing system provides optimal turbo response &

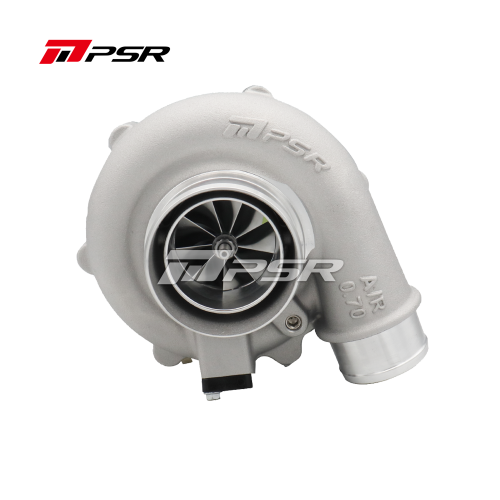

better durability by reducing the shaft-motion - 9 Blade PTG-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

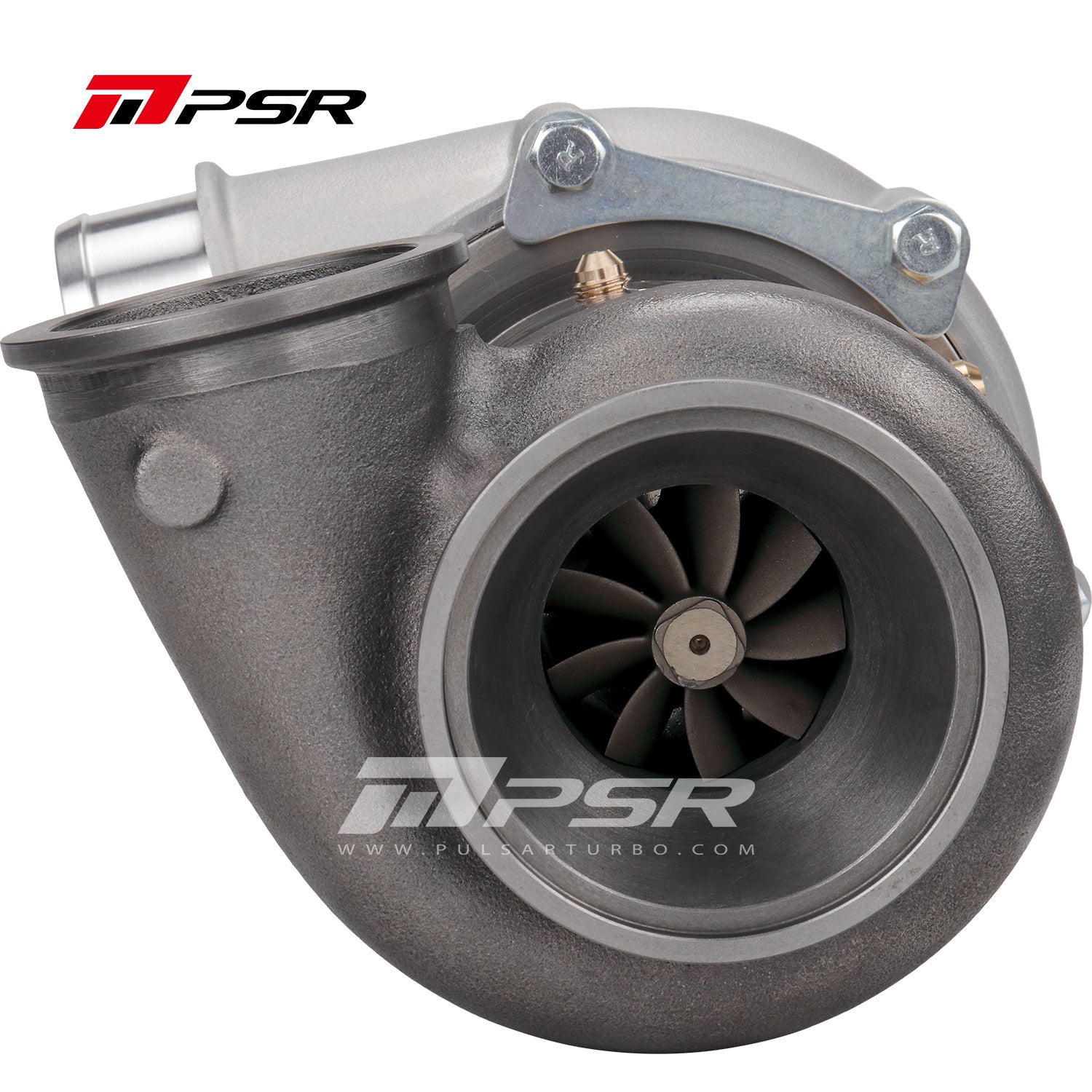

- 9 Blade PTG-Aero Inconel 713c Turbine Wheel

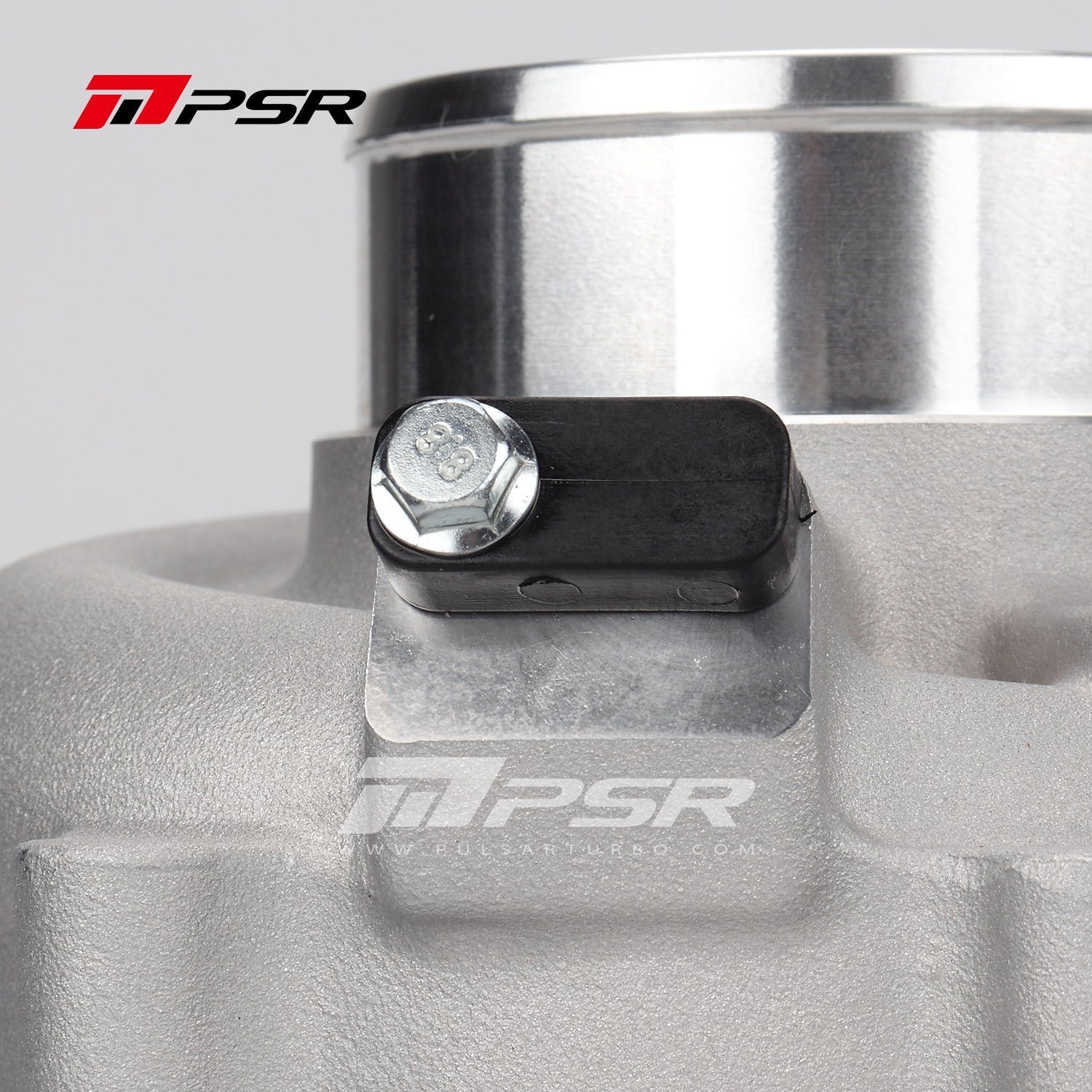

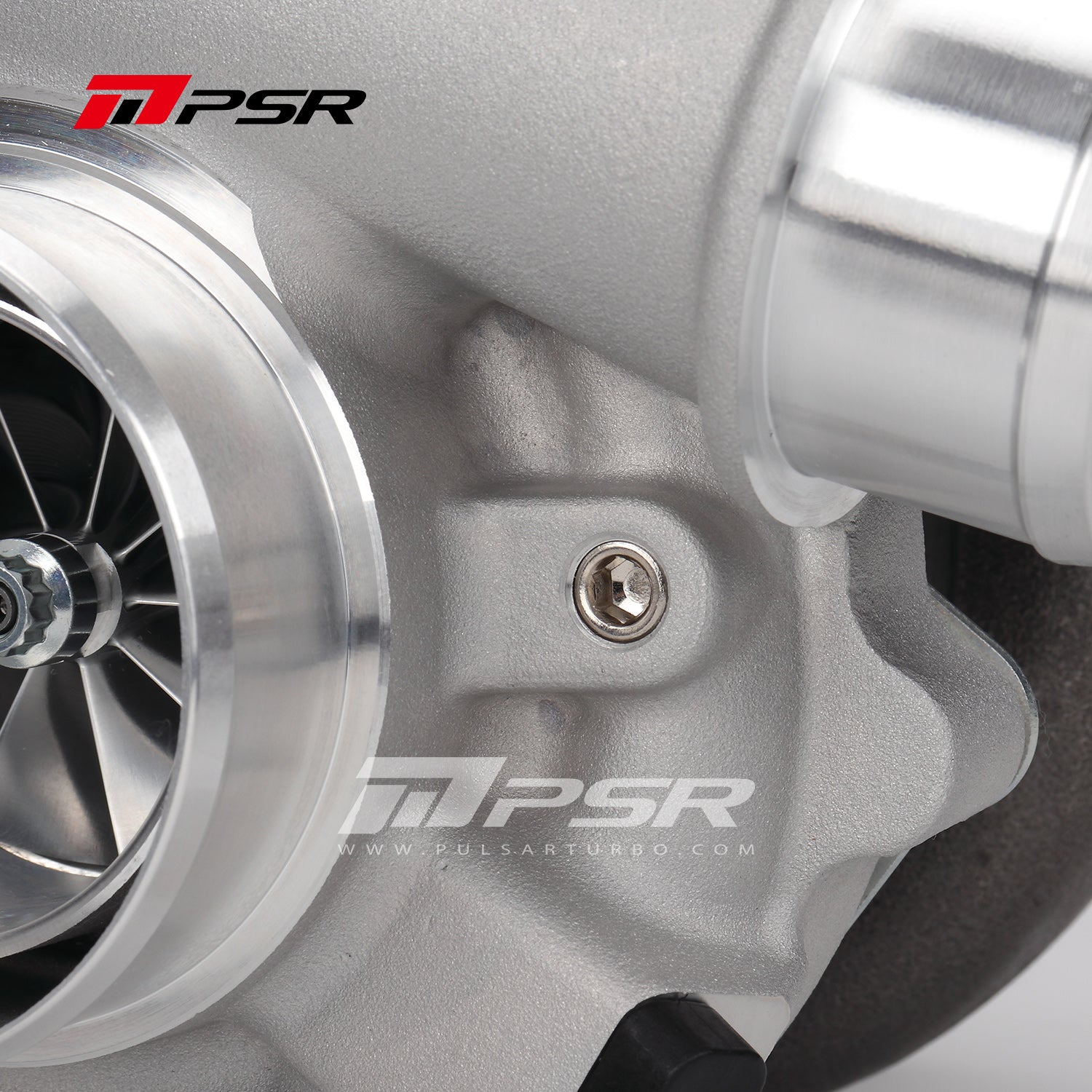

- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

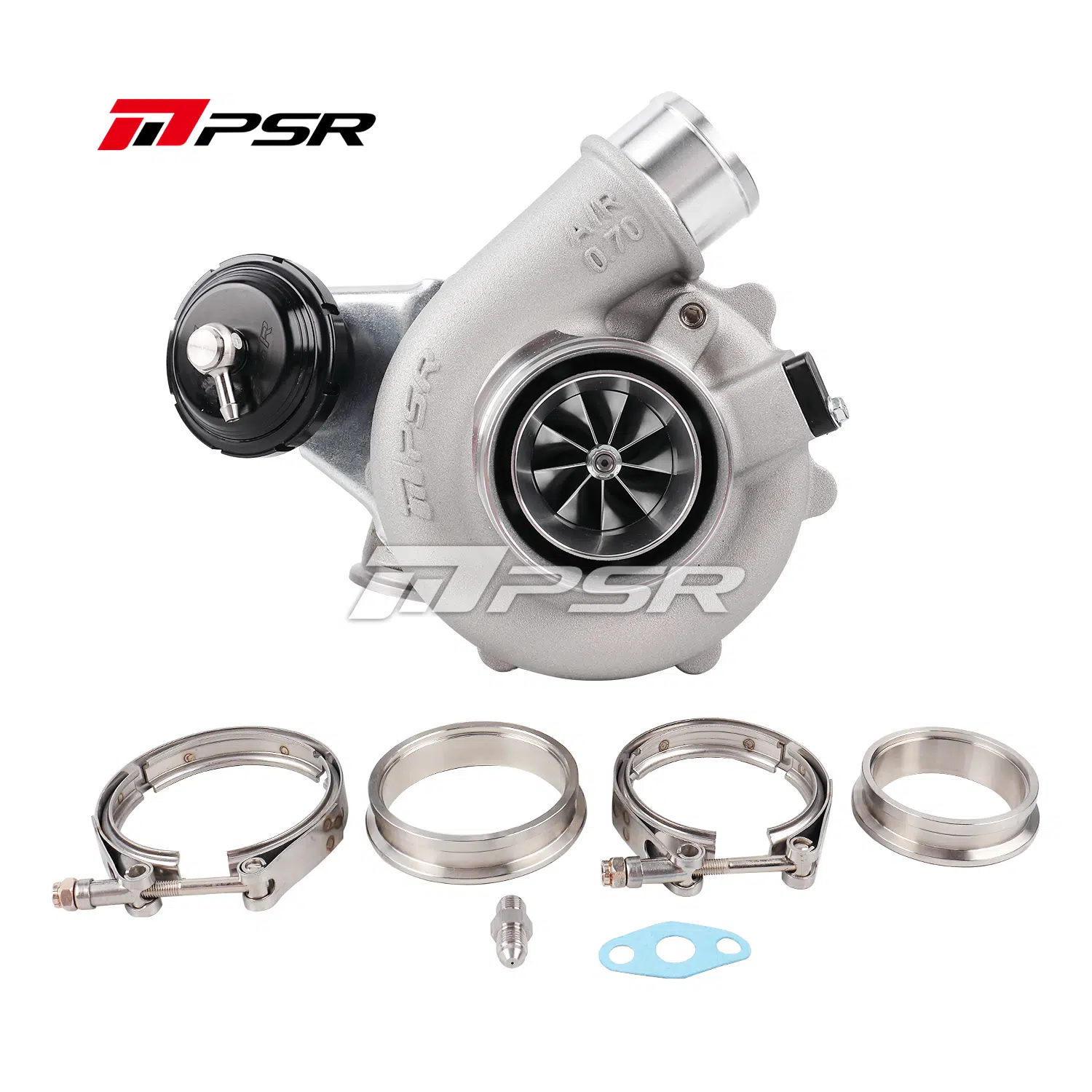

- Internally Wastegated, Billet Actuator(12-14 psi)
- Compressor Wheel: 48*60mm
- Turbine Wheel: 54*49mm

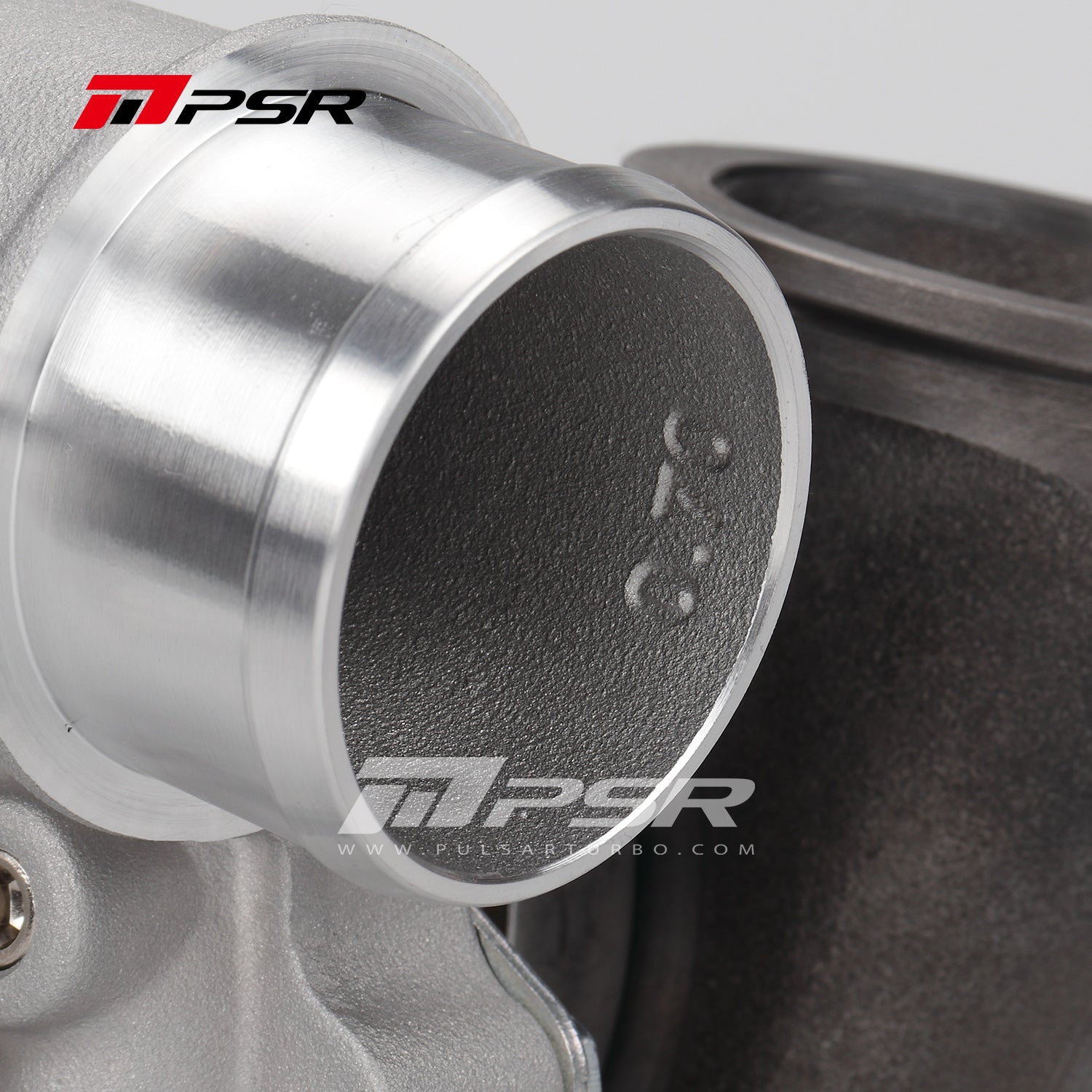

- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose

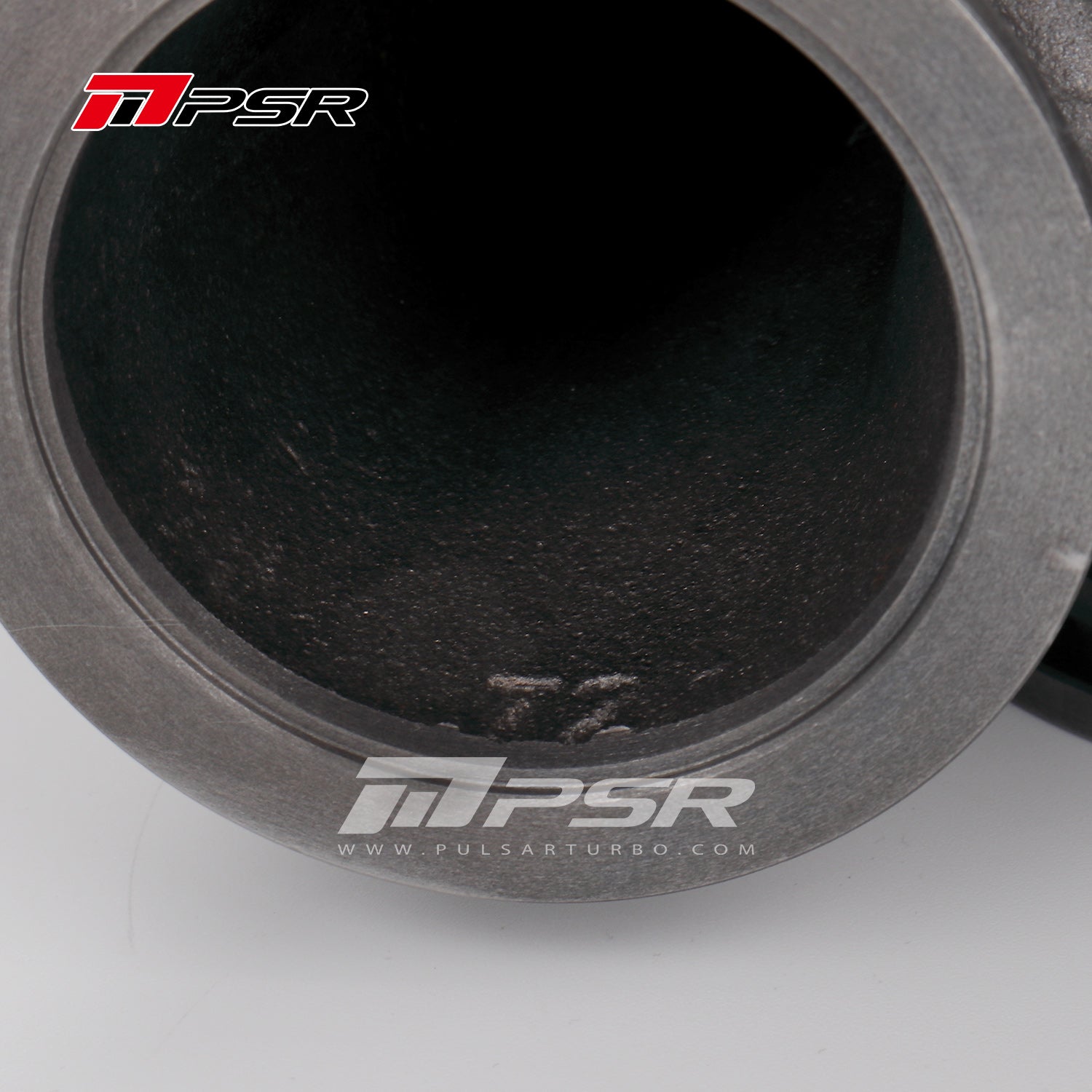

- Turbine Inlet: 2.5″ V-Band
- Turbine Outlet: 3″ V-Band
- Water Ports: -6AN
- Oil Feed: -4AN to the Oil Restrictor
- Oil Drain: Std T3 Oil Drain Flange
