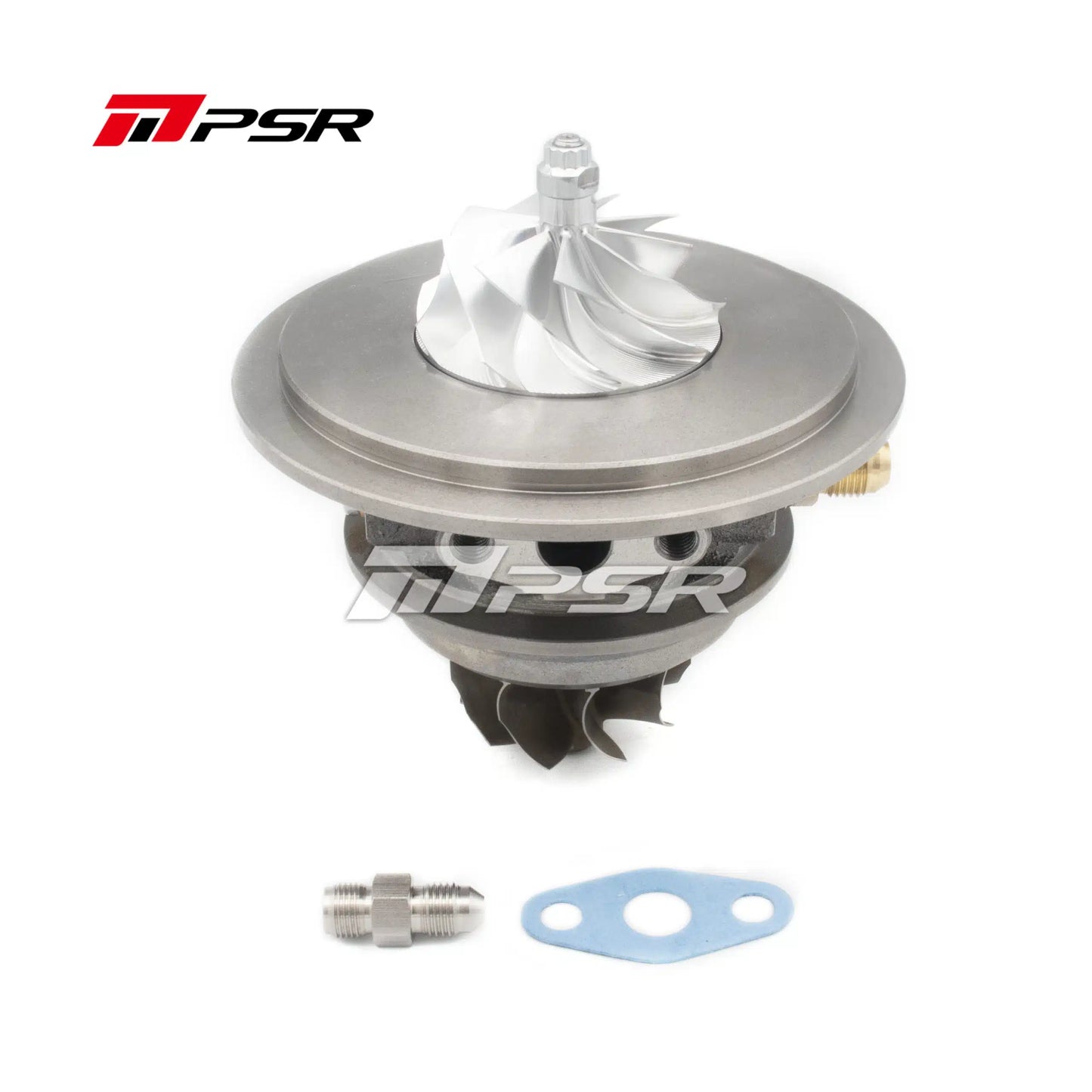

PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
  • Load image into Gallery viewer, PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
  • Load image into Gallery viewer, PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
  • Load image into Gallery viewer, PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
  • Load image into Gallery viewer, PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
  • Load image into Gallery viewer, PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
  • Load image into Gallery viewer, PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
  • Load image into Gallery viewer, PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo

PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo

Vendor
Pulsar
Regular price
$1,175.00
Sale price
$1,175.00
Regular price
Sold out
Unit price
per
Tax included.

  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade PTG-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Internally Wastegated, Billet Actuator(Working pressure 12 psi)

Description

  • Compressor Wheel: 58*71mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T3 or T4
  • Turbine Outlet: 3″ V-Band
  • Water Ports: 2-M14 X 1.5
  • Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
  • Oil Outlet: Std T3 Oil Drain Flange
  • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
  • 11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R;  Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG
